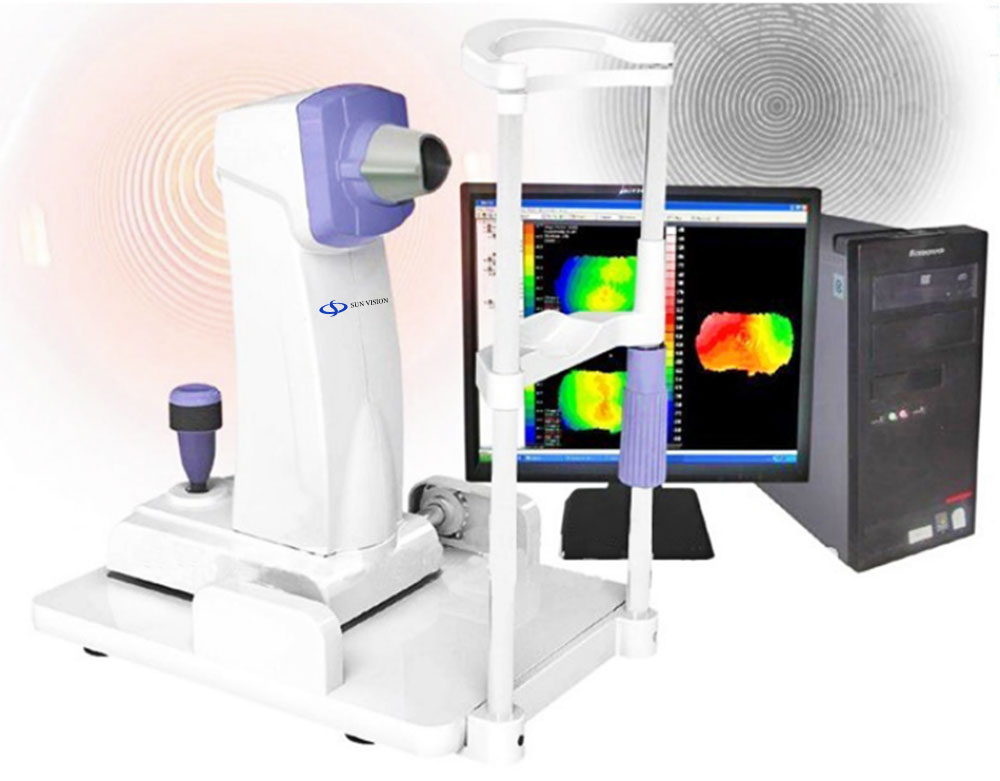

Corneal Topography SV-6000

Model: SV-6000

Feature:

Ophthalmic equipment corneal topography, corneal topographer, ophthalmic instruments.
By Placido cone, 31 rings, a total of 7936 points.
Through calculation and analysis, used in clinical diagnosis of corneal astigmatism, quantitative analysis of corneal

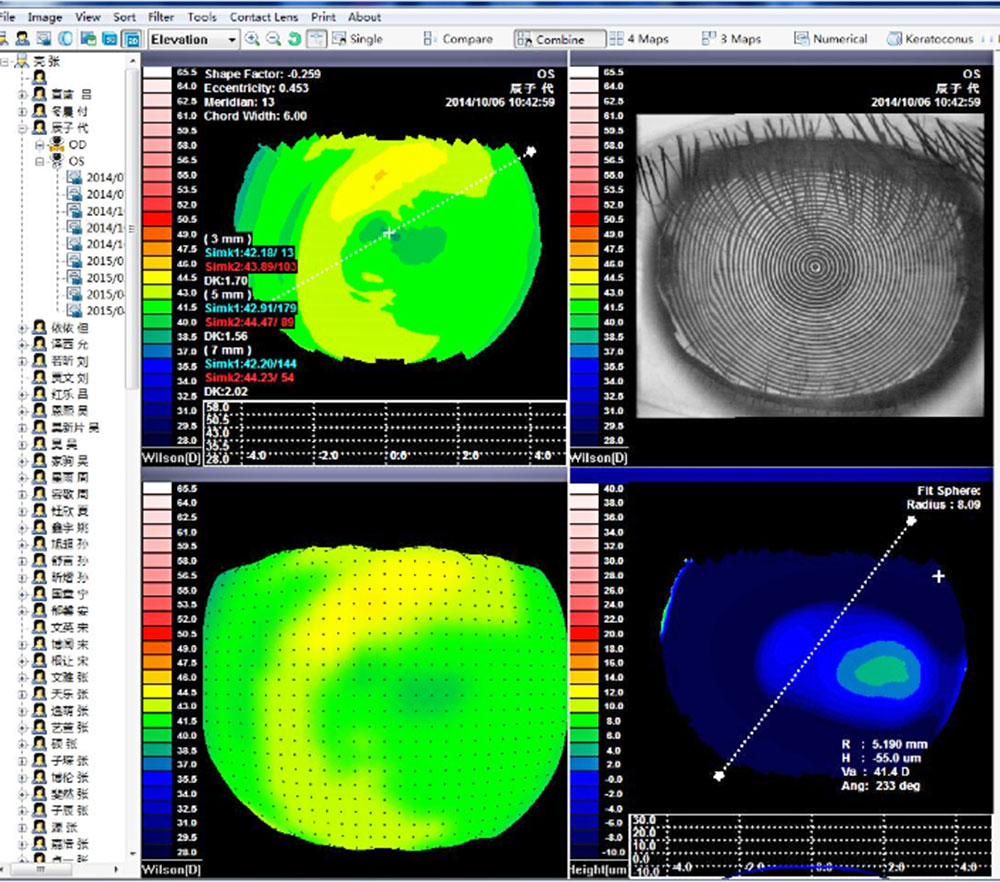

shape, display the corneal curvature by data or different colors, can display axial curvature map, tangential curvature map, height map, simulated corneal lens map and corneal 3D map.
Can be used in preoperative examination and postoperative effect evaluation of corneal refractive surgery, can guide wearing contact data lens, to improve the accuracy of adaptive contact lens

Technical Data
Measuring Method	Placido cone
Coverage	10.91mm(Diameter)
Curvature Radius	5.5mm-10.0mm
Diopter Range	33.75D-61.36D
Precision	± 0.02mm
PlacidoRings	31 rings
Measurement Points	7936 points
Display	Axial curvature map, tangential curvature map, elevation map, imitated keratoscope map and 3D cornea map
Image Output	High-quality color inkjet printer
Adjust Range	Left/right 86mm; forward/backward 40mm ; Up/down 30mm ; chinrest 5omm
Cornea Contact Lenses Fitting Function	With
Keratocon=Nus Detecting Function	With
