Non-Contact Tonometer SV-200N

Model: SV-200N
Send Inquiry
WhatsApp: +86-15730269418

Feature:

Auto chinrest adjustment.
Fast, safe and convenient.

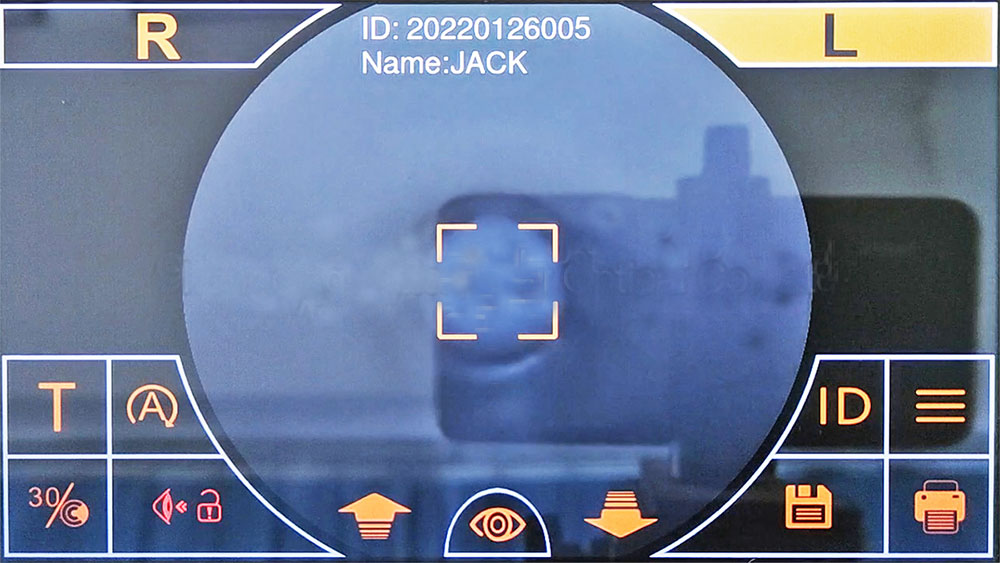

Rotatable 7 inches color LCD touch screen.
Without cornea thickness. (SV–200N)
With cornea thickness. (SV-200NP)
Touch lightly, 3D automatic intraocular pressure measurement for both eyes. Auto soft air puff, auto alignment and auto focus, auto left and right eye switch.
Air jet test: after the machine is turned on, check whether the measuring system of the instrument works normally.
Safety limit: It can avoid the contact between the air jet mouth and the patient’s eyes. When the alir jet mouth is too close to the patient’s eyes, the buzzer will give an alarm.
It can monitor intraocular pressure dynamically 24 hours, and print it on the same report sheet with intraocular pressure data.
The touch control screen can be turned 180° up and down, 60° left and right, which is convenient for the operator to support the patient and lift the eyelid.
The accurate corneal thickness measurement function is provided to provide intraocular pressure compensation value and automatically calibrate the intraocular pressure value.
The machine can be connected to the database system through DICOM3.0 to archive and read the data, which conforms to the new era hospital standard.



Technical Data
Display 7″ 1024 * 600 color touch screen
Support up and down 180°, left and right 60° turning
Corneal thickness measurement Support (SV-200A)
Measurement range CT 400-800um
Measurement increment-CCT 10um
Light Source Blue LED
Fixation lamp 1 internal fixation lamp (green LED), 2 external fixation lamps
Measuring head moving range Up and down stroke: 45 mm, Left and right stroke: 90 mm
Front and back stroke: 40 mm
Lifting range of lower jaw drag 68 mm
Working distance 11 mm (calculated from the front of nozzle)
Measurement accuracy 1mmHg (0.133Kpa )
Measuring range 0-60mmhg (0-8kpa) (including free switching between 30 / 60mmhg)
Power Supply AC100-240V, 50/60HZ
Ambient temperature 50°
Scope of operation 16mmx10mm
Printer Built in thermal printer, automatic paper cutting
Data storage Internal memory card + optional external USB memory
Networking DICOM3.0
Measurement mode Fully automatic / automatic / manual
Operating system Embedded system
Mobile platform Fully automatic platform / manual platform
Data input and output Input: USB
Output: LAN/ RS232C
Focusing mode 3D full auto focus / manual focus
Jet detection After power on, check whether the measuring system of the instrument works normally
Safety limit Support
