Specular Microscope SV-7000

Model: SV-7000

Feature：

Fully automatic working mode:
Automatic pupil detection, automatic alignment, automatic shooting, automatic analysis.
Concise user interface,
One-click operation experience.
Wide field of view & multiple measuring points
Precise focusing and high-speed imaging system

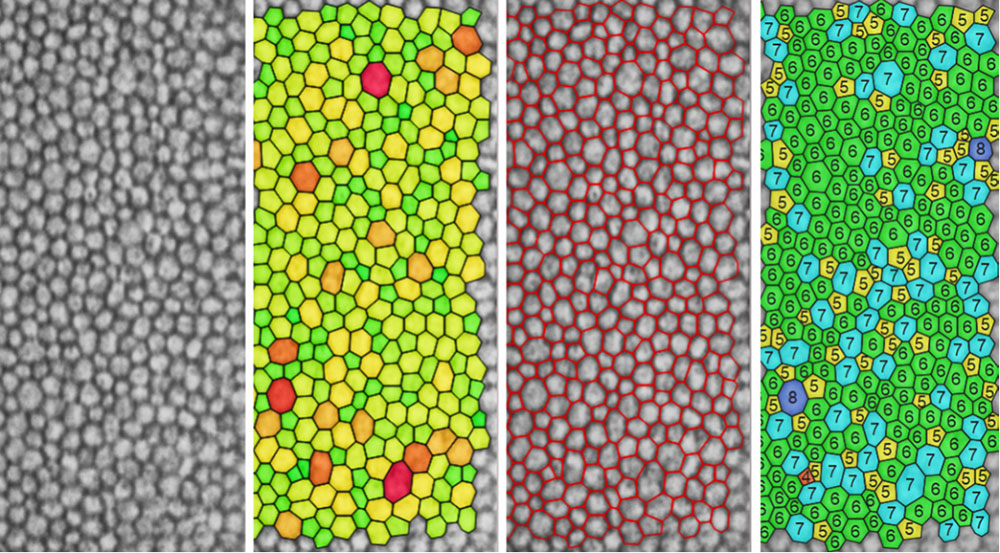

Rapid automatic analysis function
Central corneal thickness measurement
Support multiple data transmission protocols
Large-capacity database

Technicial Specification
Capturing method	Non-contact
Capturing range	0.25mmx 0.55mm
Capturing area	Center and 12 peripheral fixation points
Working mode:	Full-auto/Semi-auto
Cornea thickness measurement range	400μm ~ 750μm
Cornea thickness measurement accuracy	±10μm（＜ 600μm）；±25μm（＞ 600μm）

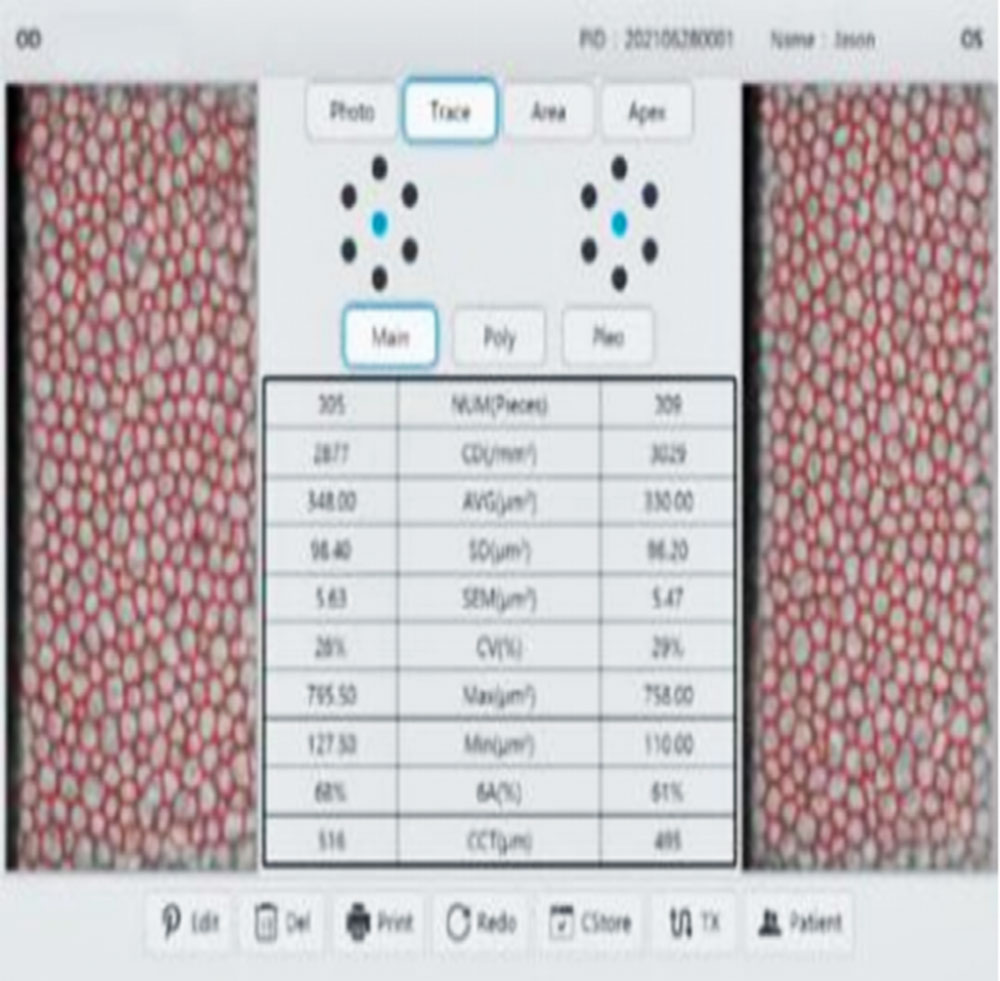

Analysis parameter	NUM（Number of cells） CD（Cell density） AVG（Average area） SD（Standard deviation of area） CV（Coefficient of Variation） MAX（Maximum area） MIN（Minimum area） 6A（Percentage of hexagonal cells）
Histogram	Area：Polymegathism（Distribution by areas） Apex: Plemorphism（Distribution by shapes）
Display	10.4” colored touchscreen（1080P）

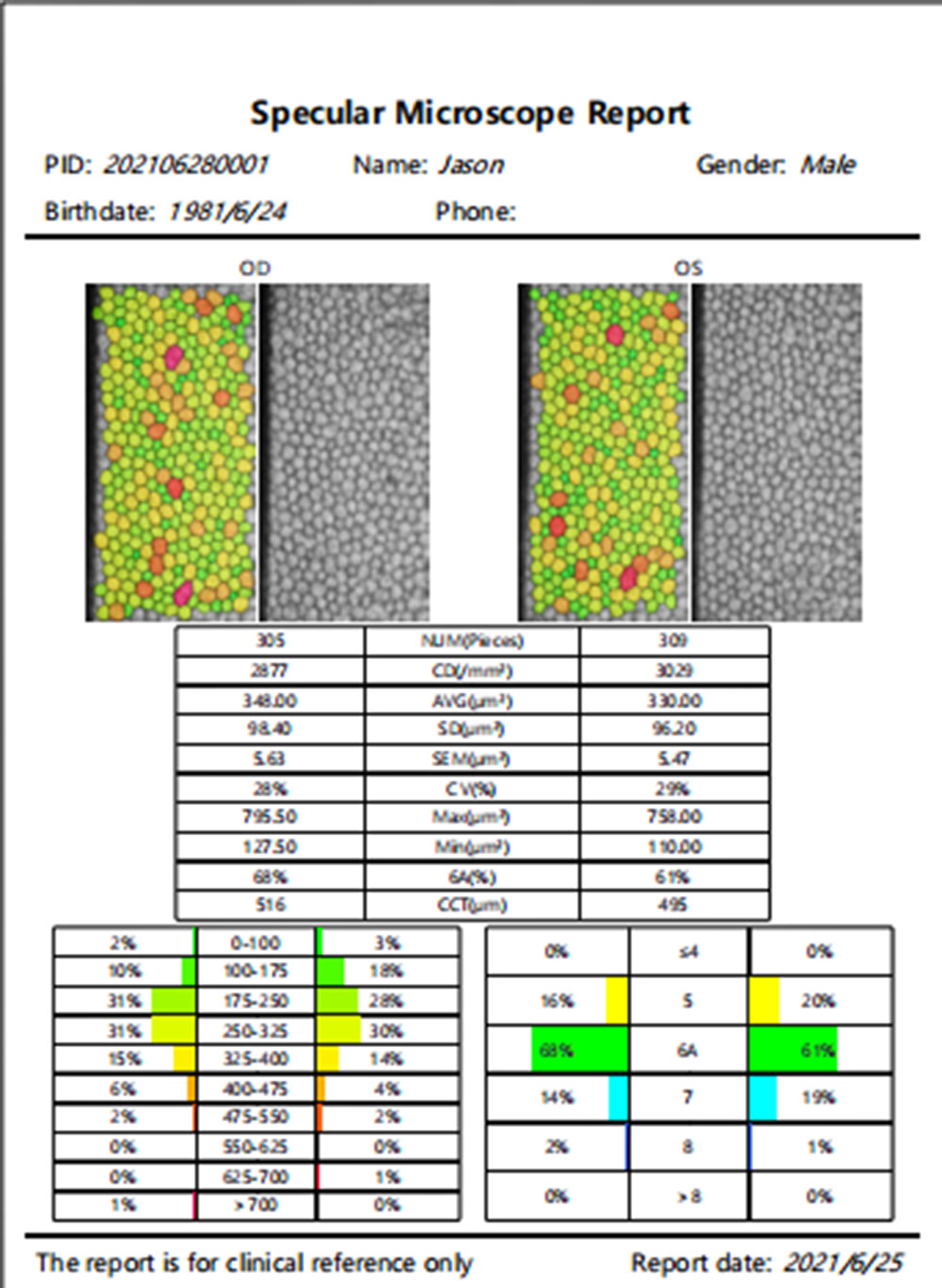

Printing	Able to connect to most regular printing devices
Data output	USB x 2；LAN x 1；support DICOM 3.0
Dimensions and weight	315 x 535 x 465mm；approx. 23Kg
Power source	100VAC ~ 240VAC；50/60Hz；100VA
