Feature:
Concise and compact design saves installation space.
Tilting screen is convenient for users to observe.

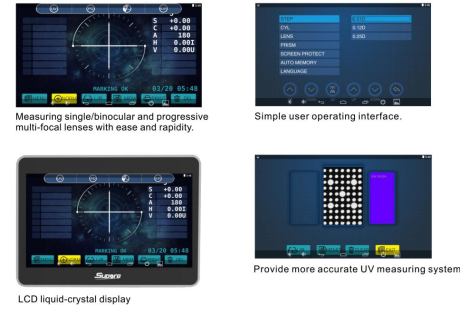

Intuitive, simple and clear interface makes operation more easier.
Excellent pressing and doting mechanism ensure accurate measuring result for each lens.
Using measurement of Hartmann theory, hundreds of measuring points makes the measurement easy and accurate.
Distribution measurement presents you with degree distribution of the lens
Printer of two-dimension code
Integration printer, more convenient for replacing papers
 |
 |
| Technical Data | |
| Spherical degree | -25m-1~+25m-1 |
| Cylindrical degree | -9.99m-1 ~+9.99m-1 |
| Under plus degree | -9.99m-1~+9.99m-1 |
| Axis for astigmatism | 00~1800 |
| Prism basal angle | 00~3600 |
| Prism degree | Horizontal direction 15∆, Vertical direction 20∆ |
| Lens size | Ø7~110 mm |
| Lens thickness | ≥20 mm |
| UV transmittance | Yes |
| Range of PD | 30~100 mm |
| Range of PH | 4~55 mm |
